1. Introduction
Alfalfa pellet making machines are essential for converting loose, fibrous alfalfa hay into dense, transportable, and long-lasting pellets. However, like all industrial equipment, these machines face wear and performance issues over time.
This guide aims to help operators, technicians, and plant managers quickly identify and resolve common issues in alfalfa pellet production, avoiding costly downtimes and product loss.
2. Importance of Consistent Operation in Alfalfa Pelletizing
A smoothly running pellet machine:
- Maximizes yield and pellet quality
- Reduces operational cost per ton
- Ensures stable output for downstream operations
- Extends machine lifespan
Troubleshooting becomes an essential skill for production teams and should be part of every operator’s training.

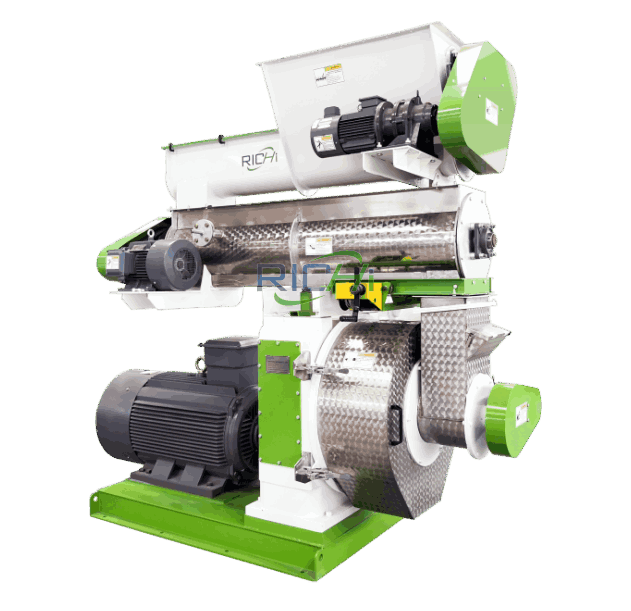

3. Overview of Alfalfa Pellet Machine Mechanics
Most alfalfa pellet machines, especially ring die types, include:
- Feeder: Transfers material to conditioner
- Conditioner: Adjusts moisture/temperature
- Pellet Chamber: Where rollers compress alfalfa through a rotating die
- Main Motor and Gearbox: Provides torque
- Discharge Chute: Where finished pellets exit
Understanding how these parts interact helps diagnose problems faster.
4. Common Symptoms of Machine Problems
Here are signs your alfalfa pellet machine may be underperforming:
- Reduced throughput
- Inconsistent pellet length or density
- Motor overload alarms
- Squealing or knocking noises
- Pellet discoloration or smoke emission
- Sudden stoppages
Each symptom points to a possible root cause we’ll now explore.
5. Problem 1: Low Pellet Output
Symptoms:
- Reduced tons/hour despite stable feeding
- Die rotating but few pellets discharged
Possible Causes & Fixes:
| Cause | Fix |
|---|---|
| Worn or dull rollers | Replace or recondition rollers |
| Die hole clogging | Clean die with oil-soaked fiber feed |
| Low raw material moisture | Add steam or water during conditioning |
| Poor feeding rate | Adjust feeding speed control |
| Alfalfa fiber too coarse | Regrind with hammer mill |
6. Problem 2: Uneven Pellet Size or Shape
Symptoms:
- Pellets appear cracked, too long, or inconsistent
Causes and Solutions:
- Die hole damage: Replace die
- Roller misalignment: Adjust roller pressure evenly
- Incorrect chopping/grinding size: Maintain uniform input size
- Feed fluctuations: Stabilize feed rate using a variable speed motor (Related post: Grass Pellet Machine)
7. Problem 3: Pellet Mill Blockage
Symptoms:
- Machine stalls suddenly
- Pellet flow stops, often with loud sound
Resolutions:
- Stop the motor and open chamber
- Remove blocked material with a scraper
- Inspect moisture—wet or sticky alfalfa causes blockage
- Install sensors to shut down machine before critical pressure levels
8. Problem 4: Machine Overheating
Signs:
- Hot to the touch frame or gearbox
- Pellet discoloration (brown or burnt)
Solutions:
- Check lubrication in bearings/gearbox
- Install water-cooled rollers if needed
- Reduce feed rate or allow cool-down intervals
- Clean vents or cooling fans
9. Problem 5: Excessive Vibration or Noise
Probable Causes:
- Unbalanced roller-die assembly
- Loose bolts or broken mountings
- Worn bearings
- Foreign material inside the chamber
Fix:
Conduct full inspection, tighten components, and replace defective parts. Consider installing anti-vibration mounts.
10. Problem 6: Broken or Worn Die and Rollers
Symptoms:
- Metal fragments in pellets
- Squealing noise, poor output
Maintenance Tip:
Replace dies after 800–1000 hours of operation. Keep spare dies and roller assemblies on-site. Hardened steel components last longer.
11. Problem 7: Poor Pellet Quality (Soft, Crumbly, or Burnt Pellets)
Key Quality Defects:
| Issue | Cause | Solution |
|---|---|---|
| Crumbling | Low moisture, insufficient compaction | Add steam or reduce fiber size |
| Soft pellets | Worn die or low compression ratio | Use new die or adjust roller distance |
| Burnt pellets | Overheating, die friction | Clean die holes, ensure cooling |
Quality control involves testing for pellet hardness, density, and moisture.
12. Problem 8: Power Supply Fluctuations
Industrial pellet machines require steady 3-phase electricity.
Issues:
- Voltage drops cause motor stalling
- Phase imbalance leads to overheating
Solutions:
- Install voltage stabilizers or UPS
- Monitor power supply with meters
- Use soft-start systems to reduce electrical surges
13. Problem 9: High Energy Consumption
Warning Signs:
- Energy bill increases without output increase
- Machine motor running hotter than usual
Fixes:
- Lubricate moving parts
- Replace clogged die
- Reduce unnecessary idling
- Match machine capacity with feedstock readiness
Energy audits can reveal hidden inefficiencies.
14. Problem 10: Dust Accumulation and Fire Risk
Alfalfa is a fibrous, dry material prone to dust creation.
Preventive Measures:
- Use cyclones and bag filters
- Regularly clean under pellet mill and fans
- Install spark arrestors
- Monitor temperature near conveyors and bins
Fire extinguishers and emergency stops should be readily accessible.
15. Scheduled Maintenance Best Practices
Create daily, weekly, and monthly checklists:
- Daily: Clean dies, inspect belts, check sensors
- Weekly: Lubricate bearings, inspect rollers
- Monthly: Change oil, calibrate feeders, inspect cooling system
Maintain logs for each activity to track performance trends.
16. Spare Parts Management
Recommended stock:
- 2–3 spare dies of different compression
- Roller sets for each pellet machine
- Belts, bearings, grease, and motors
- Electrical parts like relays and limit switches
Partner with trusted suppliers for quick delivery.
17. Operator Training and Safety Protocols
Operators should be trained to:
- Identify early signs of machine trouble
- Use personal protective equipment (PPE)
- Conduct emergency shutdown procedures
- Understand lock-out/tag-out systems
Regular refreshers and mock drills reinforce safety.
18. Real-World Case Studies of Troubleshooting
Case 1:
A farm in Oregon noticed a 40% drop in pellet output. Investigation revealed a clogged die from sap residue in fresh alfalfa. Solution: Pre-drying and steaming improved performance.
Case 2:
A plant in Argentina faced repeated roller failures. The root cause: misaligned roller shaft after improper die installation. Technician retraining and alignment tools resolved the issue.
19. Remote Monitoring and Predictive Maintenance
Smart systems can monitor:
- Motor load and efficiency
- Die pressure and roller gap
- Pellet moisture and temperature
- Vibration levels
IoT integration allows alerts for predictive repairs, extending the machine’s lifespan.
20. Conclusion
Pellet making machines are the heart of any alfalfa pellet production line, and operational issues can significantly reduce productivity and increase costs. Understanding the symptoms and solutions of common problems helps operators react quickly, maintain pellet quality, and keep the system running smoothly.
By integrating regular maintenance, operator training, and predictive technologies, producers can ensure a more reliable and efficient pelletizing operation that meets both business goals and quality standards.
